Vehicle Exiting Warning Systems

Traffic Light Control System with Sensors

Solution

Controls two-way, three-way, or four-way vehicle traffic through shared lanes, intersections, ramps, and controlled passages using intelligent detection and sequenced red/green signals.

Description

The RG1006 Traffic Control System provides intelligent 2-way, 3-way, or 4-way vehicle management for shared lanes, ramps, intersections, truck yards, and controlled facility passages. Each engineered kit includes high-visibility RG1006 red/green LED traffic lights, a PSC-6 central controller with PS126A power supply, and Decider2 intelligent vehicle motion detectors.ENGINEERED KITS: Select the complete 2-way, 3-way, or 4-way system below. The PSC-6 controller safely sequences traffic, holds conflicting approaches at red, and queues arriving vehicles for release after the active green cycle ends.

Product and Kits

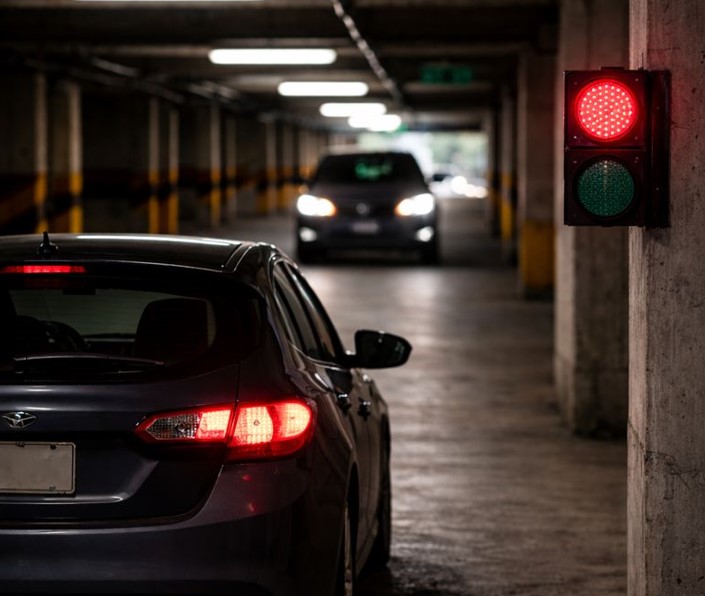

Red Green Traffic Lights for Traffic Garages

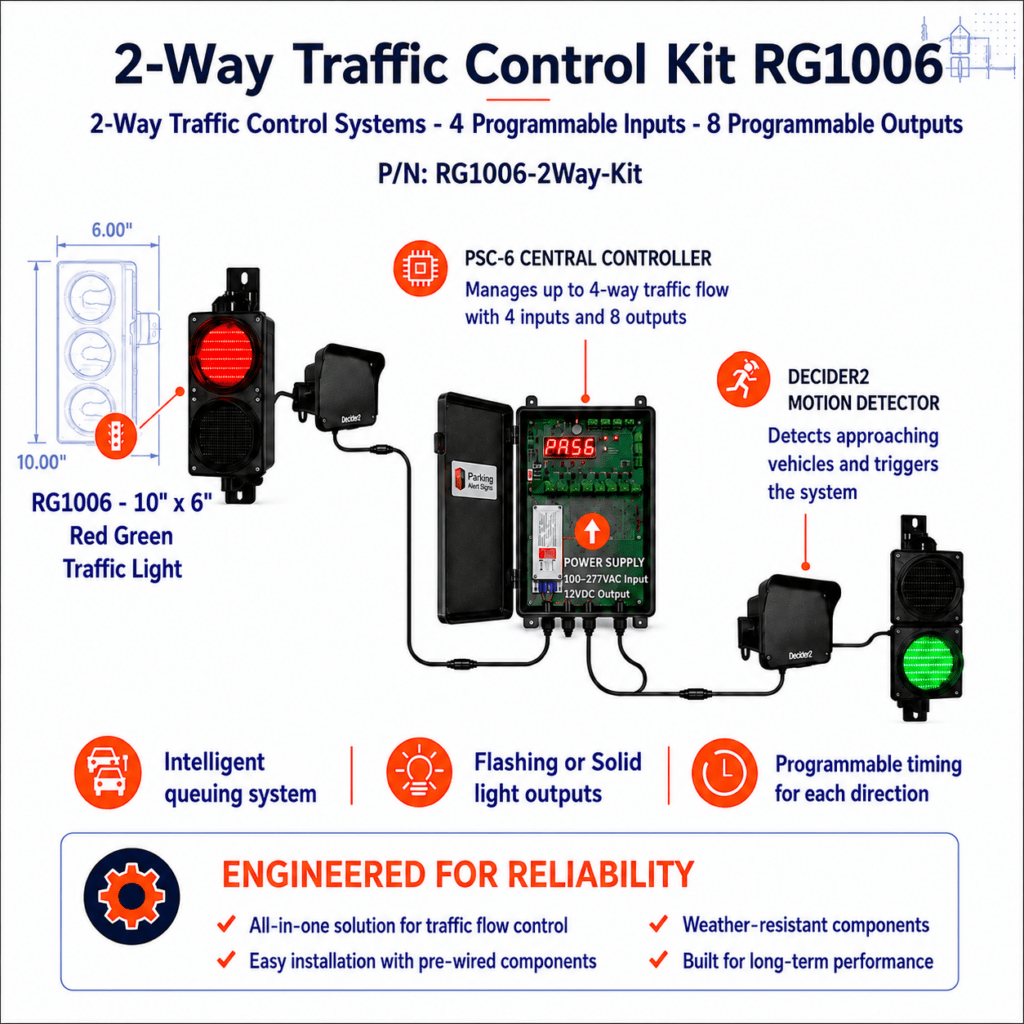

Product image of RG1006-2way-Traffic-Kit, showing a red-green LED traffic light or engineered traffic control kit for parking facilities. — RG1006-2way-Traffic-Kit

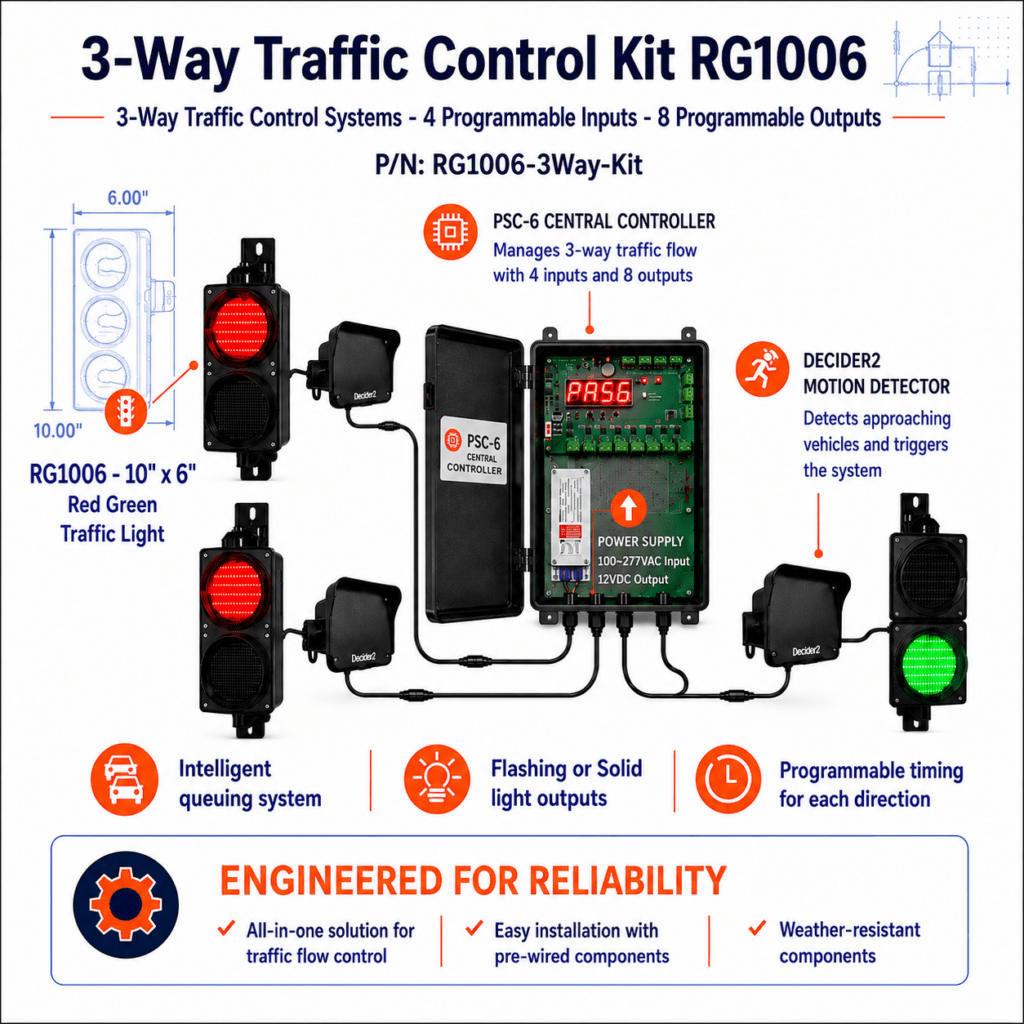

Product image of RG1006-3way-Traffic-Kit, showing a red-green LED traffic light or engineered traffic control kit for parking facilities. — RG1006-3way-Traffic-Kit

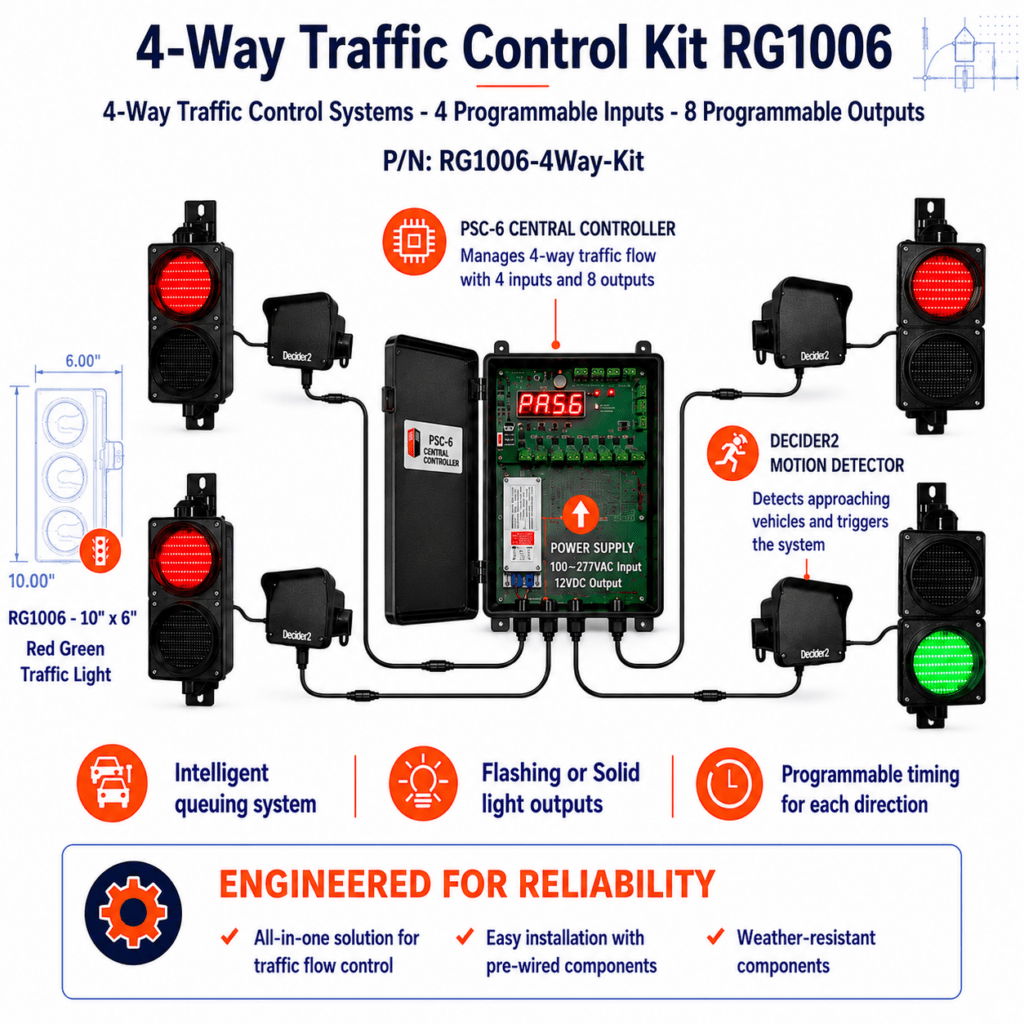

Product image of RG1006-4Way-Traffic-Kit, showing a red-green LED traffic light or engineered traffic control kit for parking facilities. — RG1006-4Way-Traffic-Kit

2-way, 3-way, or 4-way traffic control
Intelligent vehicle queuing and signal sequencing
Complete engineered kits ready for installation

Engineered Kits - Ready for install (select below)

Traffic Light Control System with Sensors - 2-Way Traffic Control Kit

P/N: RG1006-2Way-Kit

(2) RG1006 12VDC red/green traffic lights
PSC-6 central controller with PS126A power supply
(2) Decider2 intelligent vehicle motion detectors
Intelligent vehicle queuing and signal sequencing

Traffic Light Control System with Sensors - 2-Way Traffic Control Kit

MOST COMMON

Traffic Light Control System with Sensors - 3-Way Traffic Control Kit

P/N: RG1006-3Way-Kit

(3) RG1006 12VDC red/green traffic lights
PSC-6 central controller with PS126A power supply
(3) Decider2 intelligent vehicle motion detectors
Intelligent vehicle queuing and signal sequencing

Traffic Light Control System with Sensors - 3-Way Traffic Control Kit

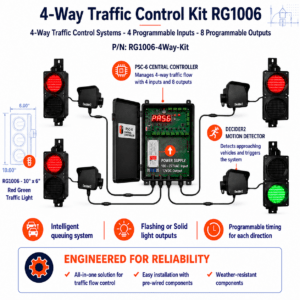

Traffic Light Control System with Sensors - 4-Way Traffic Control Kit

P/N: RG1006-4Way-Kit

(4) RG1006 12VDC red/green traffic lights
PSC-6 central controller with PS126A power supply
(4) Decider2 intelligent vehicle motion detectors
Intelligent vehicle queuing and signal sequencing

Traffic Light Control System with Sensors - 4-Way Traffic Control Kit

SELECTED VERSION

P/N:

Price

QTY

Estimated Total

Free Shipping in US for most orders over $500

Product Training

Specs & Docs

Installation Guides

Specifications

Details

Part Numbers	RG1006-2Way-Kit – 2-Way Traffic Control System RG1006-3Way-Kit – 3-Way Traffic Control System RG1006-4Way-Kit – 4-Way Traffic Control System
Type	Traffic Control Systems / Engineered Kits
Traffic Light Dimensions	10″ H x 6″ W x 5″ D
Traffic Light Material	Ruggedized fiberglass
Finish	Black finish
Rating	Outdoor rated – direct weather
Controller	PSC-6 Traffic Control Board

Operations

Decider2 intelligent vehicle motion detectors activate the system. When a vehicle is detected at one approach, the PSC-6 gives that direction a green light for the programmed activation time while all conflicting approaches remain red. Vehicles arriving during an active cycle are queued and released in sequence after the current timer ends.

The PSC-6 supports programmable timing, flashing or constant outputs, and two-way through four-way traffic control.

Common Activation Triggers

Common Accessories

PSC-5 Intelligent Sign Controller
$375.00 – $575.00 Build your System This product has multiple variants. The options may be chosen on the product page
