RG1006 Timed Traffic Control System

Solution

Controls two-way, three-way, or four-way traffic with a repeating timed red/green sequence, independent green intervals, and a programmable all-red clearance delay—without vehicle sensors.

Description

The RG1006 Timed Traffic Control System provides automatic two-way, three-way, or four-way red/green traffic sequencing for shared lanes, parking garage intersections, truck yards, ramps, and controlled vehicle passages. Each kit combines outdoor-rated RG1006 traffic lights with the PSC-6 Timed Central Controller and PS126A power supply. Independent green intervals and a programmable all-red clearance delay keep traffic moving in a predictable repeating sequence without vehicle sensors. Optional dry-contact inputs can temporarily give a selected direction priority.

Product and Kits

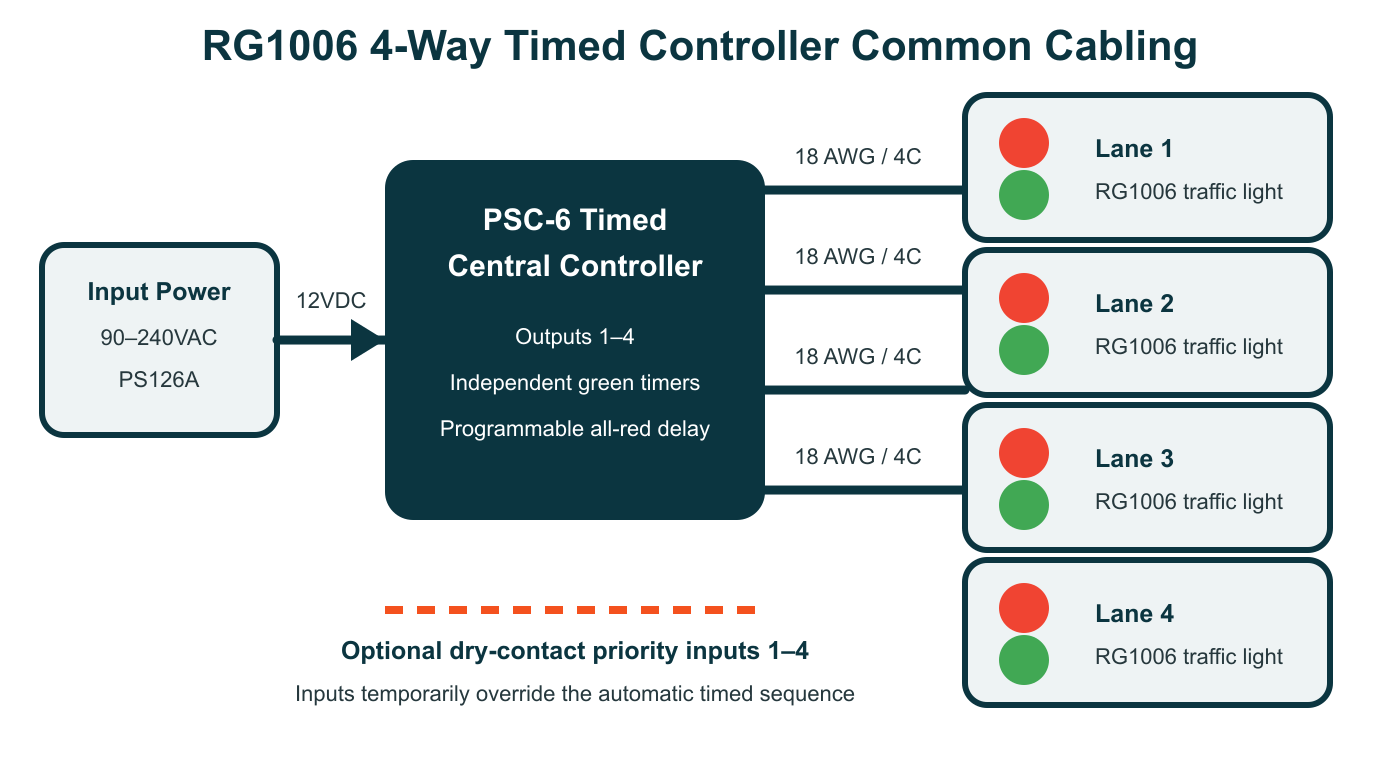

Wiring diagram showing PS126A power, PSC-6 timed controller, and four RG1006 traffic light outputs for a 4-way timed traffic control system. — RG1006 4-Way Timed Controller Common Cabling Diagram

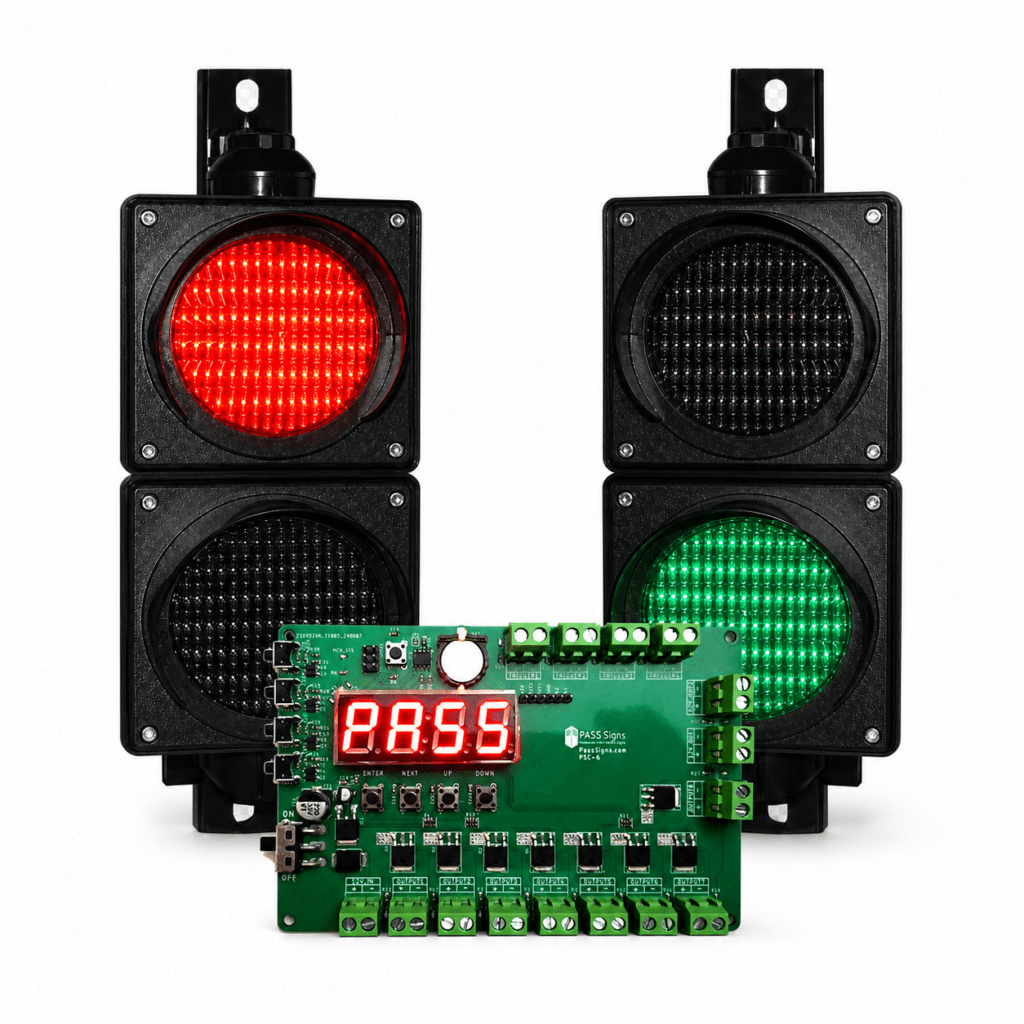

RG1006 2-way timed traffic control system kit with two red-green traffic lights and a PSC-6 timed controller. — RG1006 2-Way Timed Traffic Control System Kit

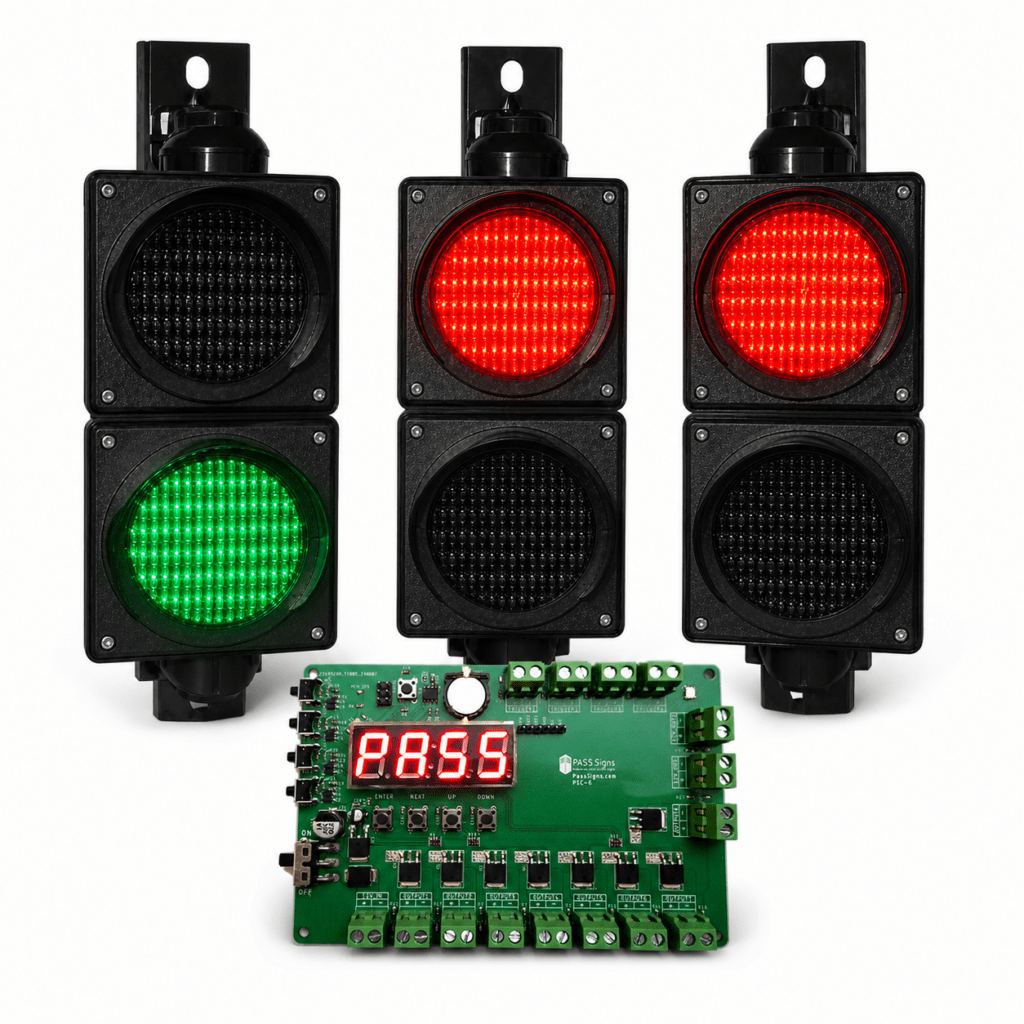

RG1006 3-way timed traffic control system kit with three red-green traffic lights and a PSC-6 timed controller. — RG1006 3-Way Timed Traffic Control System Kit

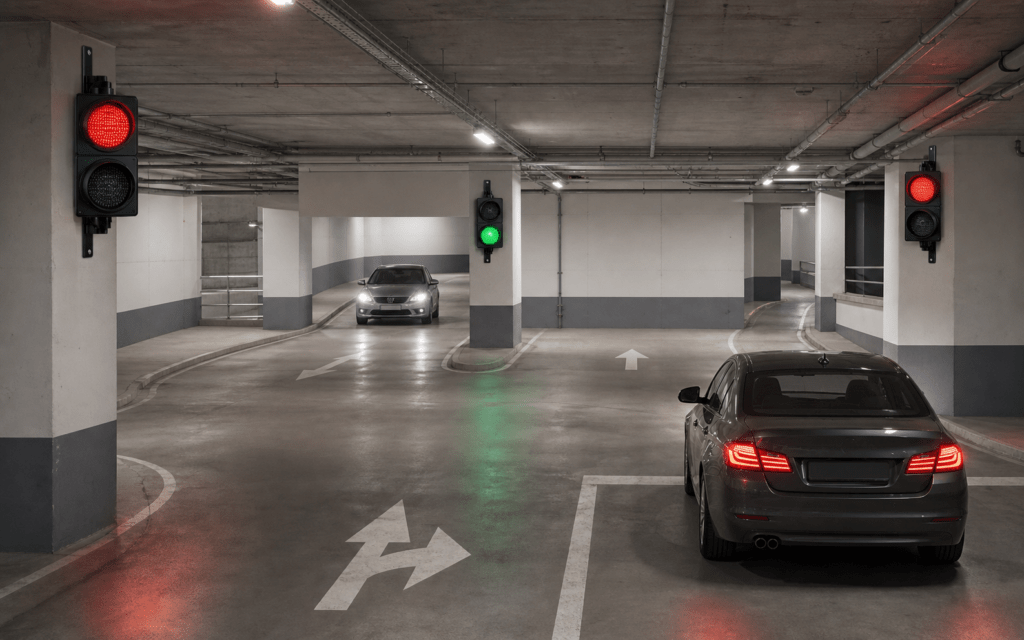

Parking garage using RG1006 timed red-green traffic lights to control vehicles through a shared intersection without vehicle sensors. — RG1006 Timed Traffic Control System in Parking Garage

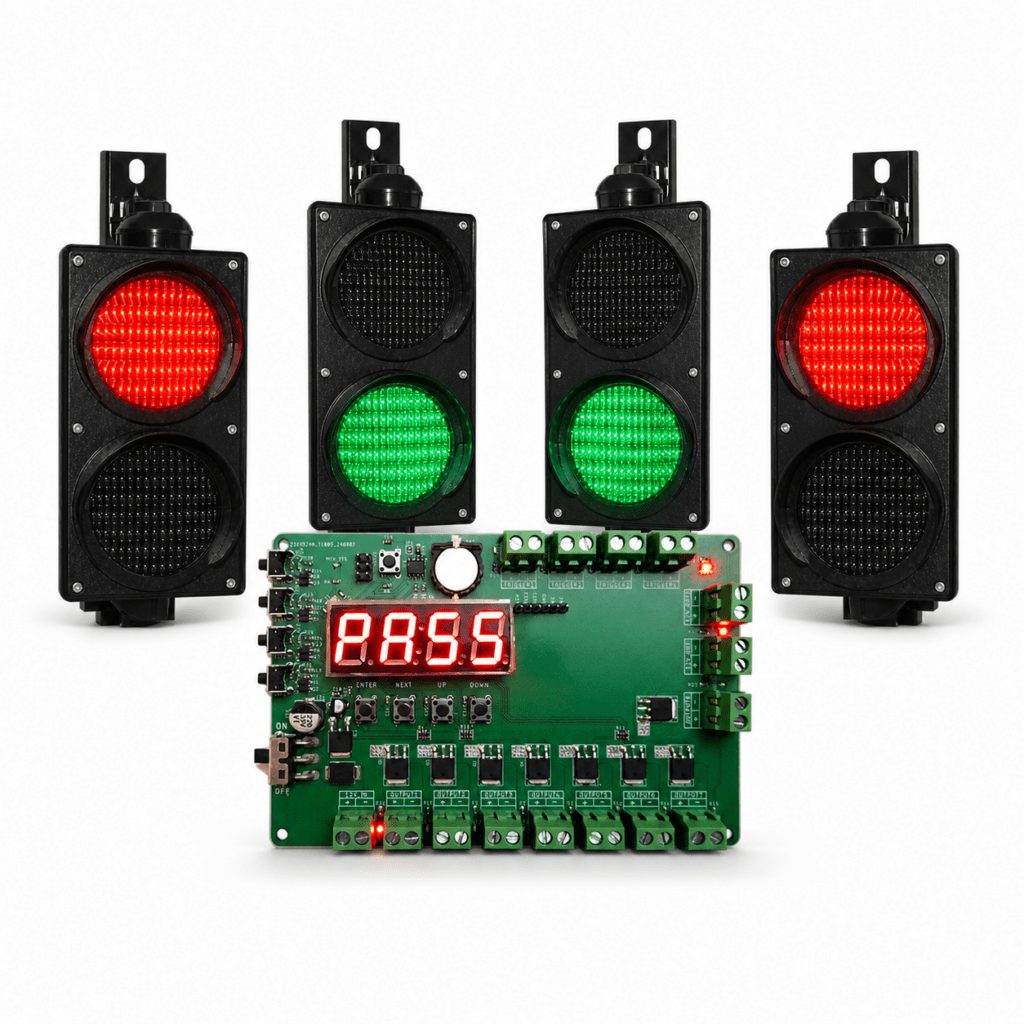

RG1006 timed traffic control system kit with PSC-6 controller and four red-green LED traffic lights for parking garages and controlled vehicle intersections. — RG1006 Timed Traffic Control System Kit – 4-Way Configuration

Automatic 2-way, 3-way, or 4-way timed sequencing
No vehicle sensors required for standard operation
Independent green times with programmable all-red delay

Engineered Kits - Ready for install (select below)

RG1006 Timed Traffic Control System - 2-Way Timed Traffic Control Kit

P/N: RG1006-2Way-Timed-Kit

(2) RG1006 12VDC red/green traffic lights
PSC-6 Timed Central Controller with PS126A power supply
Independent green intervals and programmable all-red delay
No vehicle sensors required for standard operation

RG1006 Timed Traffic Control System - 2-Way Timed Traffic Control Kit

Price $964.00

Qty

MOST COMMON

RG1006 Timed Traffic Control System - 3-Way Timed Traffic Control Kit

P/N: RG1006-3Way-Timed-Kit

(3) RG1006 12VDC red/green traffic lights
PSC-6 Timed Central Controller with PS126A power supply
Independent green intervals and programmable all-red delay
No vehicle sensors required for standard operation

RG1006 Timed Traffic Control System - 3-Way Timed Traffic Control Kit

Price $1,227.00

Qty

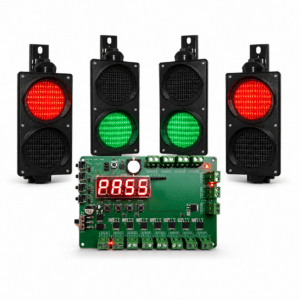

RG1006 Timed Traffic Control System - 4-Way Timed Traffic Control Kit

P/N: RG1006-4Way-Timed-Kit

(4) RG1006 12VDC red/green traffic lights
PSC-6 Timed Central Controller with PS126A power supply
Independent green intervals and programmable all-red delay
No vehicle sensors required for standard operation

RG1006 Timed Traffic Control System - 4-Way Timed Traffic Control Kit

Price $1,491.00

Qty

Free Shipping in US for most orders over $500

Product Training

Specs & Docs

Installation Guides

PSC-6 Timed Traffic Controller Programming Guide

Specifications

Details

Part Numbers	RG1006-2Way-Timed-Kit – 2-way timed kit – Includes (2) RG1006 red/green traffic lights and PSC-6 Timed Central Controller with PS126A power supply RG1006-3Way-Timed-Kit – 3-way timed kit – Includes (3) RG1006 red/green traffic lights and PSC-6 Timed Central Controller with PS126A power supply RG1006-4Way-Timed-Kit – 4-way timed kit – Includes (4) RG1006 red/green traffic lights and PSC-6 Timed Central Controller with PS126A power supply
Type	Timed Traffic Control Systems / Engineered Kits
Traffic Light Dimensions	10″ H x 6″ W x 5″ D
Traffic Light Material	Ruggedized fiberglass
Finish	Black finish
Rating	Outdoor rated – direct weather
Controller	PSC-6 Timed Traffic Control Board
Input Power	90–240VAC through PS126A power supply
Control Voltage	12VDC
Configurations	2-way, 3-way, or 4-way
Green Timing	0–120 seconds per direction
All-Red Delay	0–30 seconds between lane changes
Priority Inputs	Up to four optional dry-contact overrides
Outputs	Eight programmable 12VDC outputs, flashing or constant

Operations

The PSC-6 Timed Central Controller automatically repeats a programmed red/green sequence for two, three, or four directions. Standard operation does not require vehicle detectors.

All directions begin at red.
Direction 1 receives its programmed green interval.
The controller returns all directions to red for the programmed clearance delay.
The next direction receives its independent green interval.
After the final direction, the sequence repeats from Direction 1.
Optional dry-contact inputs can temporarily give a selected direction priority.

Each direction can be independently programmed from 0–120 seconds. The all-red delay can be programmed from 0–30 seconds, and outputs can operate in flashing or constant mode.
