RG0606-12VDC Single-Lens Red/Green Traffic Light

Solution

Provides a compact single-lens red/green traffic light for controlled vehicle movement, lane status indication, and stop/go traffic control systems.

Description

The RG0606 is a compact, high-visibility single-lens 2-in-1 combination red/green LED traffic light designed for controlled vehicle movement in parking garages, ramps, truck yards, parking lots, blind corners, and access-control lanes. The lens is 4″ or 100mm.1 Input for Red light 1 Input for Green lightIts rugged outdoor housing operates from 12VDC and works with the PSC-6 Traffic Control Board or another compatible 12VDC output controller.

$195.00

Product and Kits

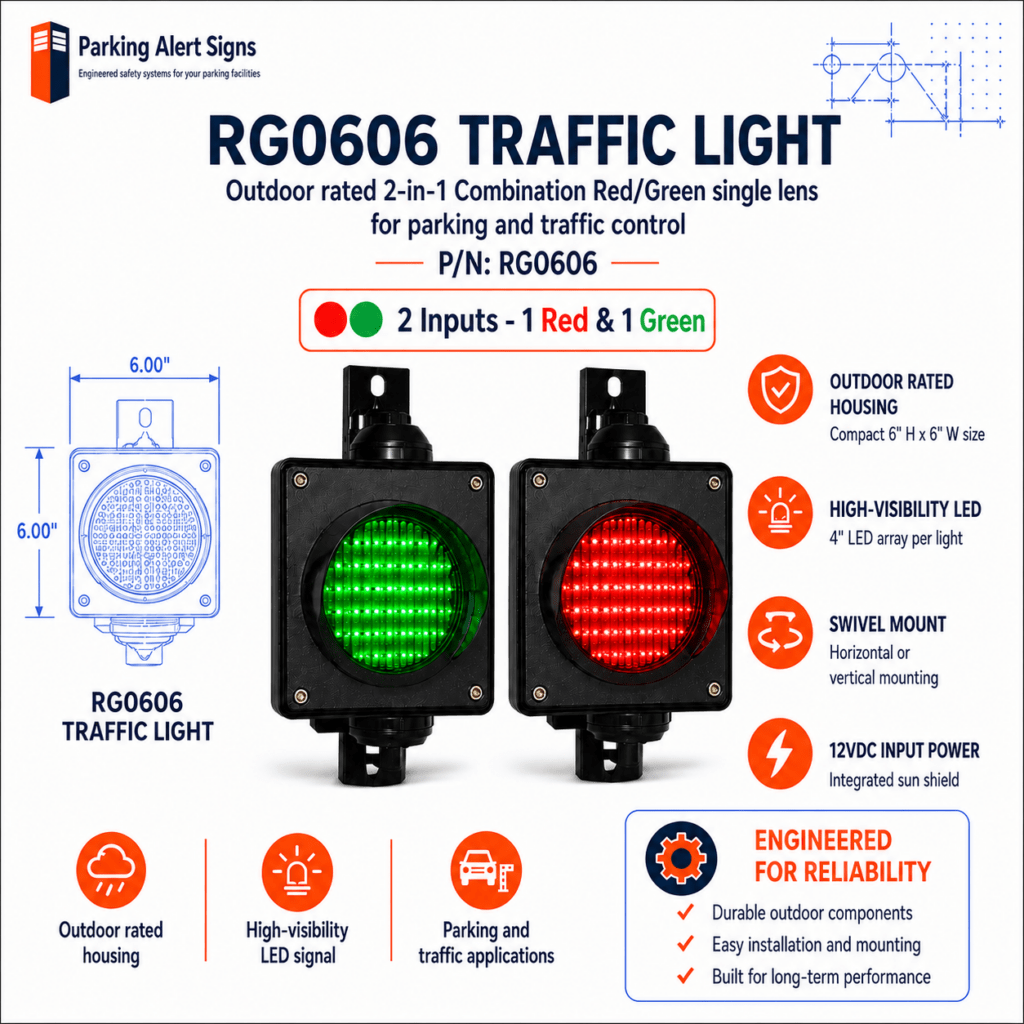

RG0606 - Red Green 100m 2-in-1 Traffic LIght

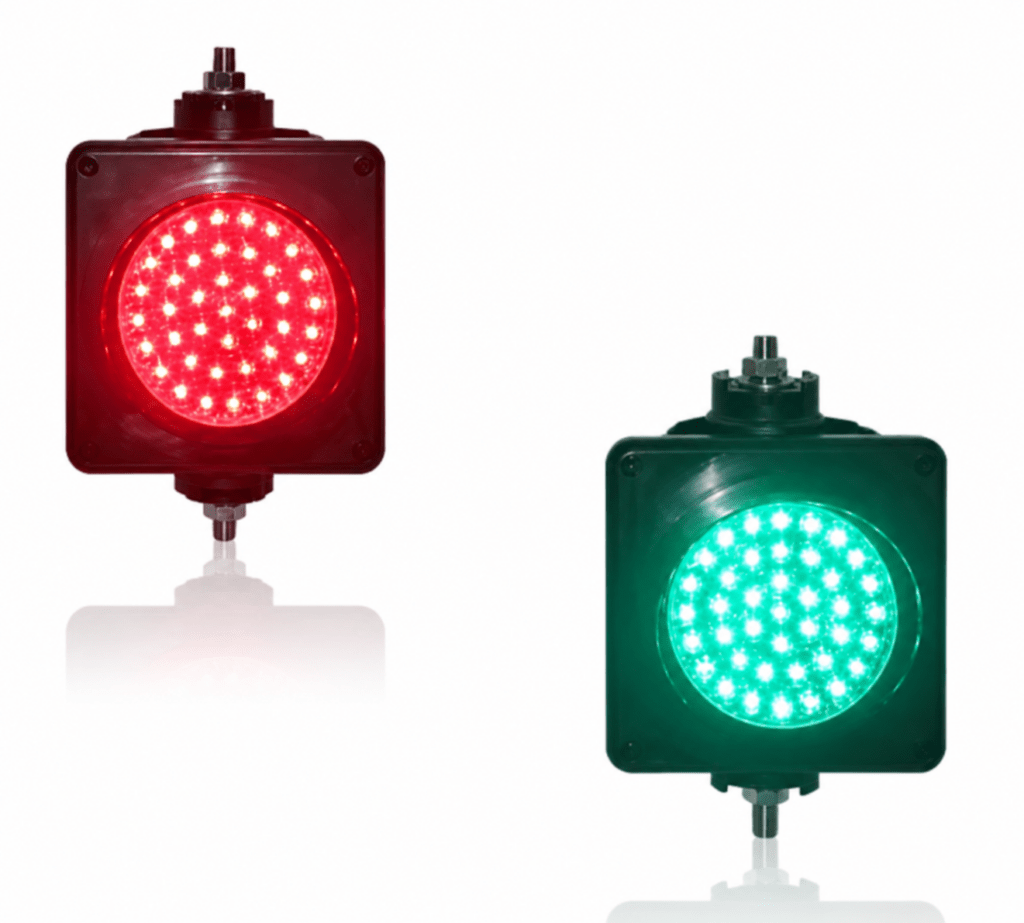

RG0606 100mm 2-in-1 Traffic Light Red Green
RG0606 100mm 2-in-1 Traffic Light Combination Red Green

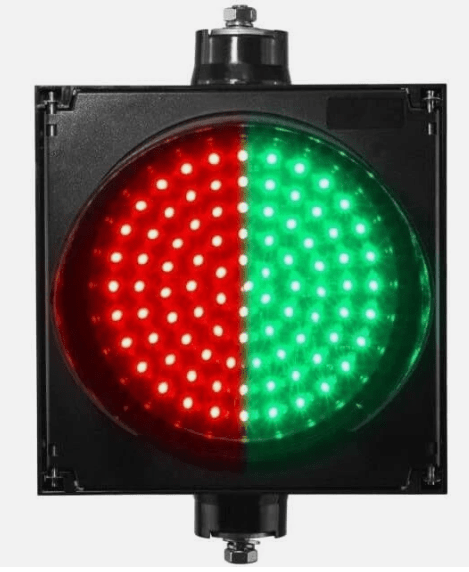

RG0606 single-lens red and green LED traffic light for compact 12VDC vehicle traffic control applications.
RG0606 Single-Lens Red Green Traffic Light
  • Compact single-lens red and green LED indications
  • 12VDC operation for PSC traffic controllers
  • Outdoor-rated housing with swivel mounting hardware
Product image of Parking Signs Design Services, showing Parking Alert Signs custom design services for engineered parking safety systems.
Specifications
Documentation
Trigger Devices
Accessories

Engineered Kits - Ready for install (select below)

This is not a Variable Product, or it was not found (ID: 1746)

$195.00

$195.00

Product Training

Specs & Docs

RG0606 Single-Lens Red Green Traffic Light Datasheet

Installation Guides

Specifications

Part NumberRG0606-12VDC
Part NameRG0606 Single-Lens Red/Green Traffic Light
TypeSingle-lens 12VDC LED traffic signal
Dimensions6″ H × 6″ W
MaterialRuggedized fiberglass housing
FinishBlack finish
Input Power12VDC
RatingOutdoor rated — direct weather
ControllerPSC-6 Traffic Control Board
MountingSwivel mounting hardware included

Operations

The RG0606 is controlled by a PSC-6 Traffic Control Board or another compatible 12VDC output device. The single lens displays RED to tell drivers to stop and GREEN to tell drivers to proceed through the controlled lane or traffic point.
