Detects vehicles and/or pedestrians to either act as a safety device or to act as an activation device. The sensor uses radar to generate a signal and detect when a vehicle and’/or pedestrian is present.

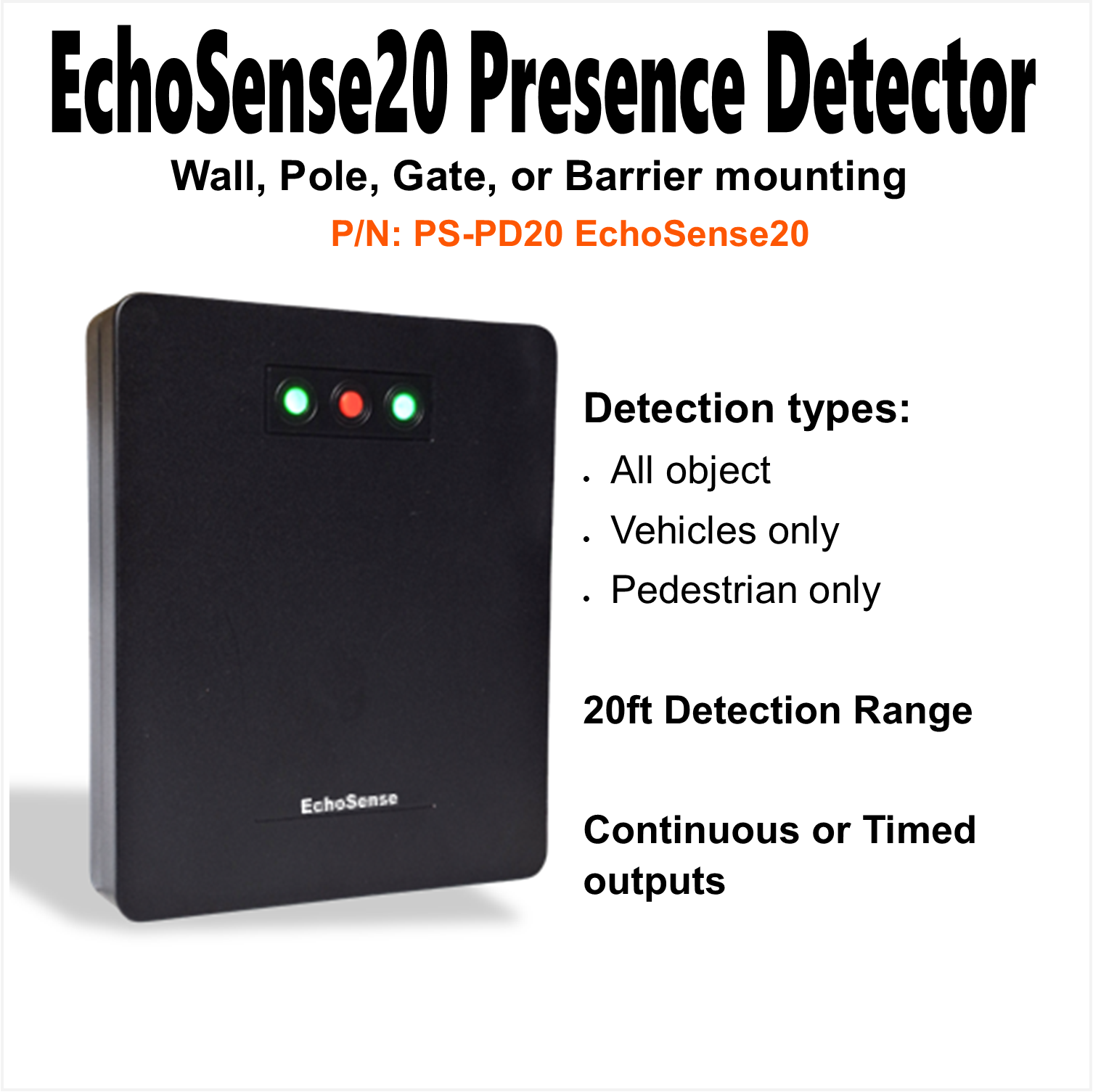

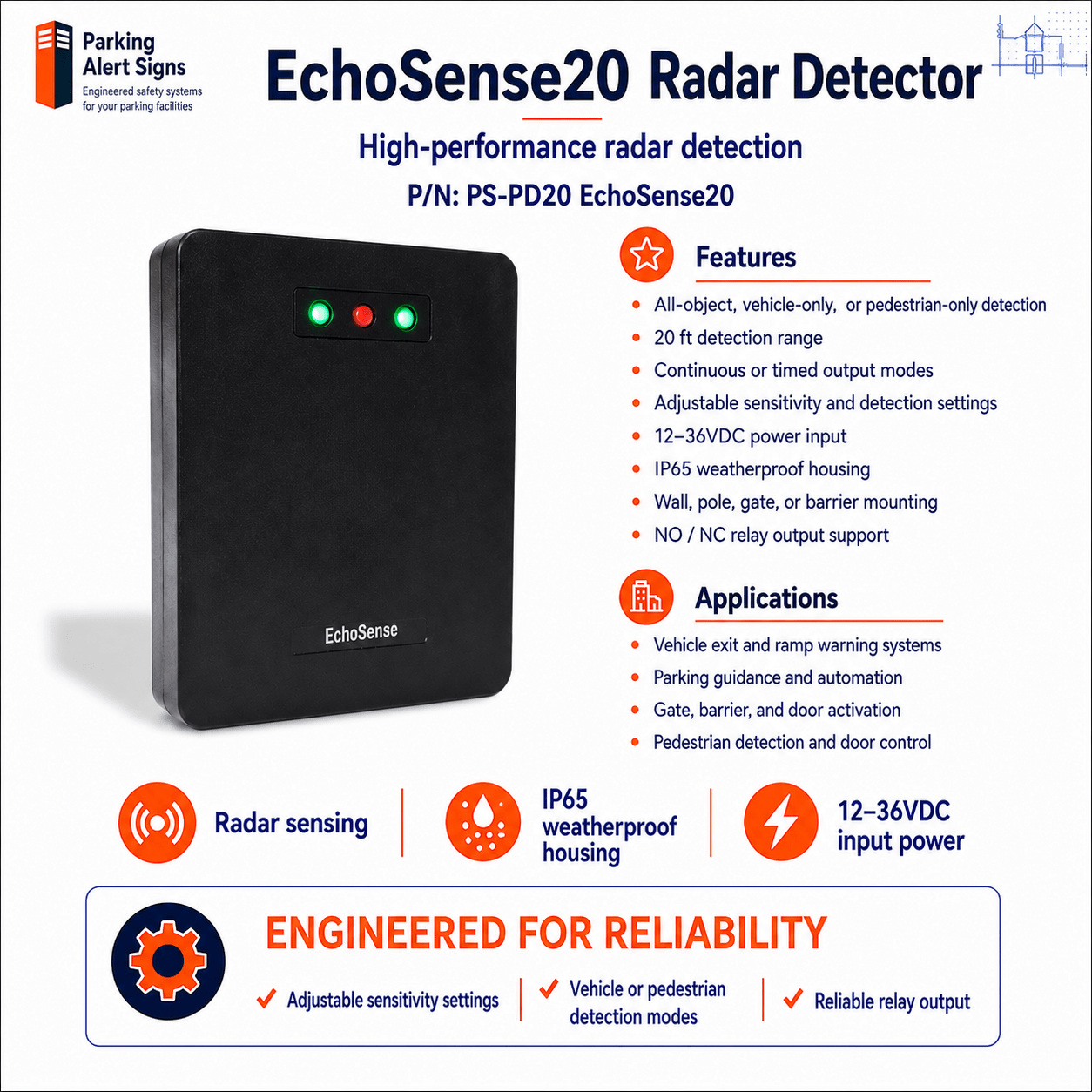

The PS-PD20 EchoSense20 is a compact, radar-based presence detector engineered for safety and activation purposes. It can be configured to detect vehicles only, pedestrians only, or both, with precise control over detection range, sensitivity, and output timing. Ideal for integration with gates, doors, warning signs, and access control systems, the EchoSense20 provides reliable detection.
Part Name: EchoSense20 Presence Detector
Part #: PS-PD20
Mounting: Wall or post – 18" to 30" height from ground, or higher for trucks
Detection Area: 20’ depth × 6’ wide at 20’ depth
Dimensions: 4.6”H × 4”W x 1”D
Material & Rating: Weatherproof housing
Power Input: 12V DC
Mounting Height: 18" to 30" from the ground
Mounting Type: Wall or post
Detection Area: 20’ depth × 6’ wide at 20’ depth
Applications
Operations
Detects vehicles and/or pedestrians using radar
presence sensing
• Adjustable detection distance: 3 ft to 20 ft
• Sensitivity settings: Low, Medium, High
• Vehicle/Pedestrian differentiation mode
• Multiple relay output modes: Presence only or
timed pulse (1–6 seconds)

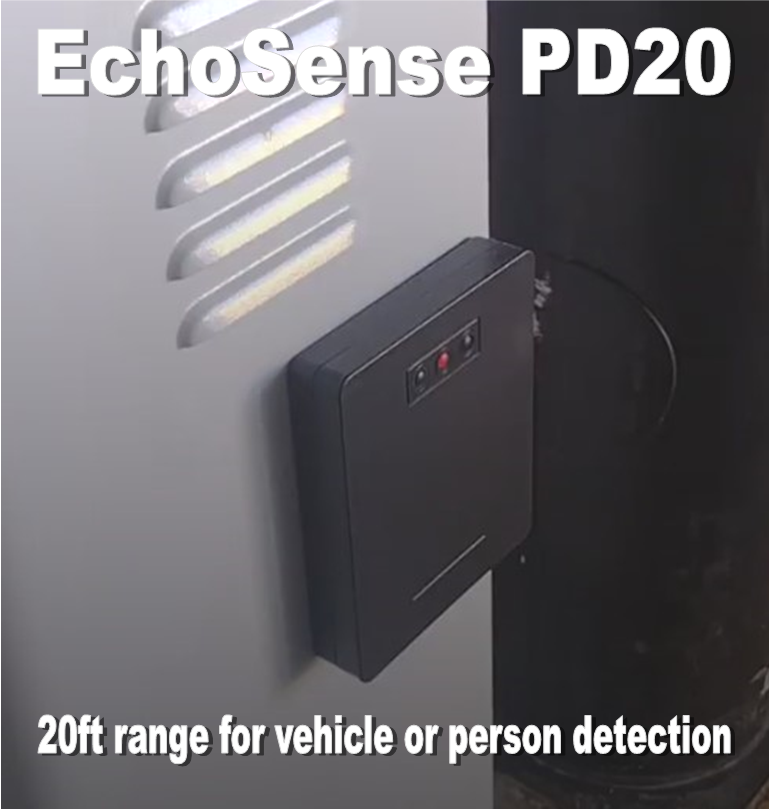

• Selectable device type: Barrier Gate, Sliding Gate,
Pulse output
• Weatherproof housing for outdoor use
