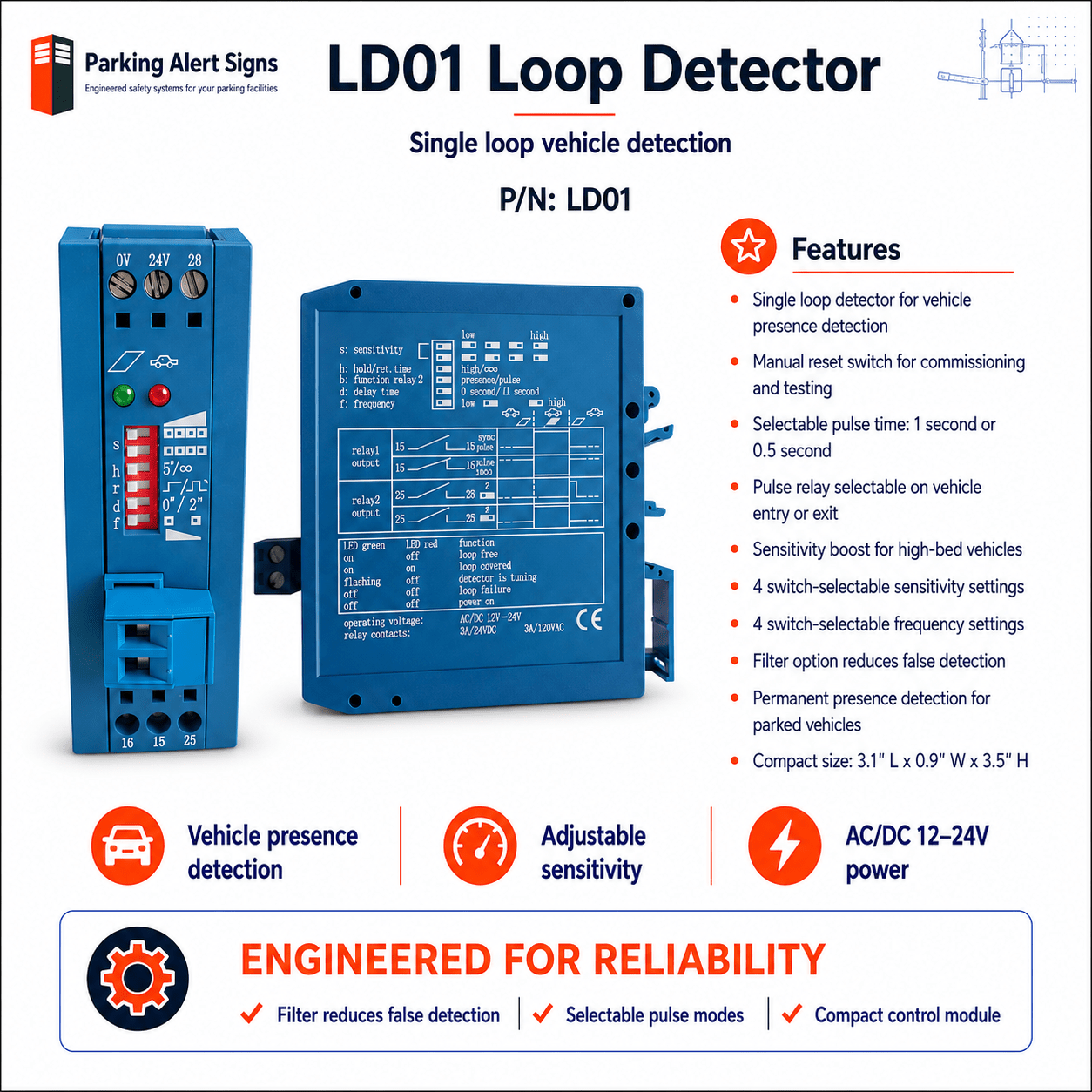

The LD-1 is a compact single-channel inductive loop detector that recognizes vehicles through a loop installed in the pavement. Automatic calibration and continuous frequency rebalancing support stable operation, while four adjustable sensitivity levels adapt to different loop sizes and vehicle types. DIN-rail mounting and relay outputs simplify integration with control systems.
$60.00
This is not a Variable Product, or it was not found (ID: 1746)
$60.00
$60.00
| Part Number | LD-1 |
|---|---|
| Type | Single-channel inductive loop detector |
| Dimensions | 3.1 x 0.9 x 3.5 in |
| Frequency | 20–130 kHz |
| Loop Inductance | 50–800 µH |
| Sensitivity | 4 levels |
| Hold Time | 5 minutes or infinite |
| Power Input | 12/24 VAC/VDC |
| Operating Temperature | -4°F to 158°F |
| Rating | Indoor control / IP20 |
When a vehicle enters the loop, the LD-1 activates the presence relay and illuminates the red LED. Relay 2 can provide a continuous output or a pulse, and hold time can be set to 5 minutes or infinite. Low and high frequency selection helps reduce cross-talk between adjacent loops. Loop faults are indicated by the LEDs and automatically rechecked.
