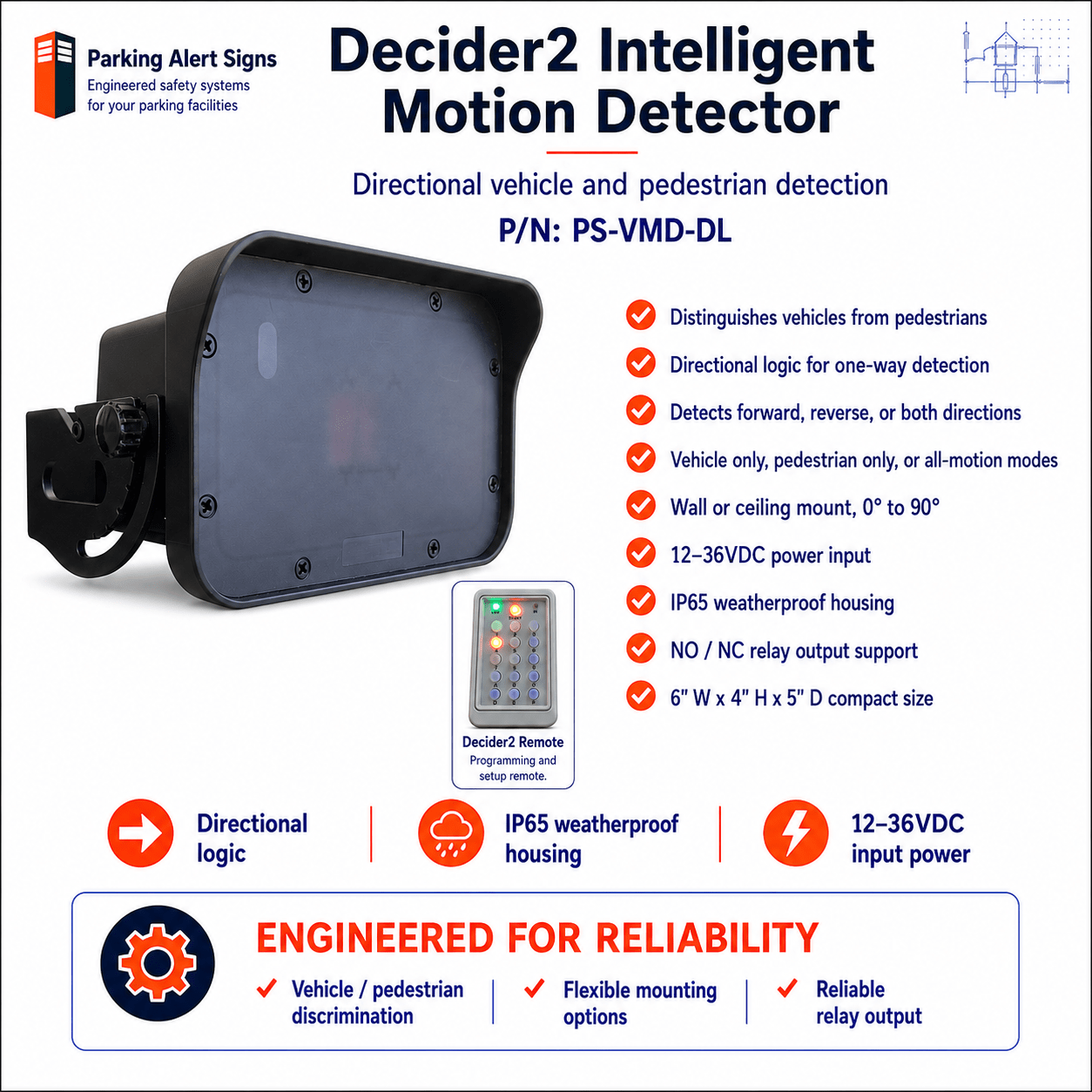

Decider2 Motion Detector w/ Directional-logic

Solution

The Decider2 Intelligent Motion Detector solves the challenge of accurately detecting and distinguishing between vehicles and pedestrians, providing precise directional detection to enhance safety, prevent false activations, and improve traffic management efficiency.

Description

Decider2 is an advanced motion detector designed for enhanced safety and security. It accurately distinguishes between vehicles and pedestrians, outputs based on object type and direction of movement. This innovative technology is ideal for smart city applications, traffic management, and surveillance, ensuring more efficient monitoring and response to movement in various environments.

We sell direct!
Need help? We will design your system for you.
Free shipping in US over $500
2 Year Warranty

Training videos

Part name: Decider2, Intelligent motion detector
Part#: PS-VMD-DL
Mounting: Wall or Ceiling - Min 6ft to Max 28ft from object
Dimensions: 4”H x 6”W x 5"D
Material and Rating: Plastic, IP65 weatherproof
Power In: 12~36VDC 150ma



Operations

Function 1: Directional Logic Vehicle Motion Detection
Detects ONLY cars and ONLY in a single direction. This prevents false detection from pedestrians walking through the area and vehicles traveling in the opposite direction.

Function 2: Directional Logic Pedestrian Motion Detection
Detects ONLY pedestrians and ONLY in a single direction. This prevents false detection from pedestrians walking opposite direction or crossing the zone.

Operation Modes
Mode 1: Motion forward
Mode 2: Motion backwards
Mode 3: Motion in both directions

Function 1: Directional Logic Vehicle Motion Detection
Detects ONLY cars and ONLY in a single direction. This prevents
false detection from pedestrians walking through the area and
vehicles traveling in the opposite direction.

Function 2: Directional Logic Pedestrian Motion Detection
Detects ONLY pedestrians and ONLY in a single direction. This
prevents false detection from pedestrians walking opposite

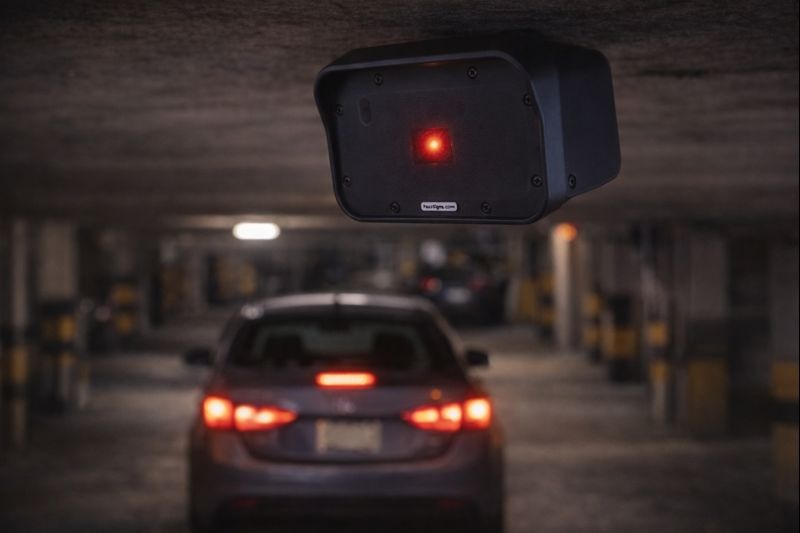

Vehicle Applications:
• Activating vehicle exit signs
• Activating ramp warning signs
• Activating traffic control systems
• Opening garage or roll-up doors

direction or crossing the zone.
Pedestrian Applications:
• Activating pedestrian detection systems
• Activating storefront automatic doors
• Activating crosswalk systems
