PSC-5 Control Board for warning systems

Solution

Controls signs and devices used in warning and alert systems with voice and audio, flashing circuits, and programmable outputs

Description

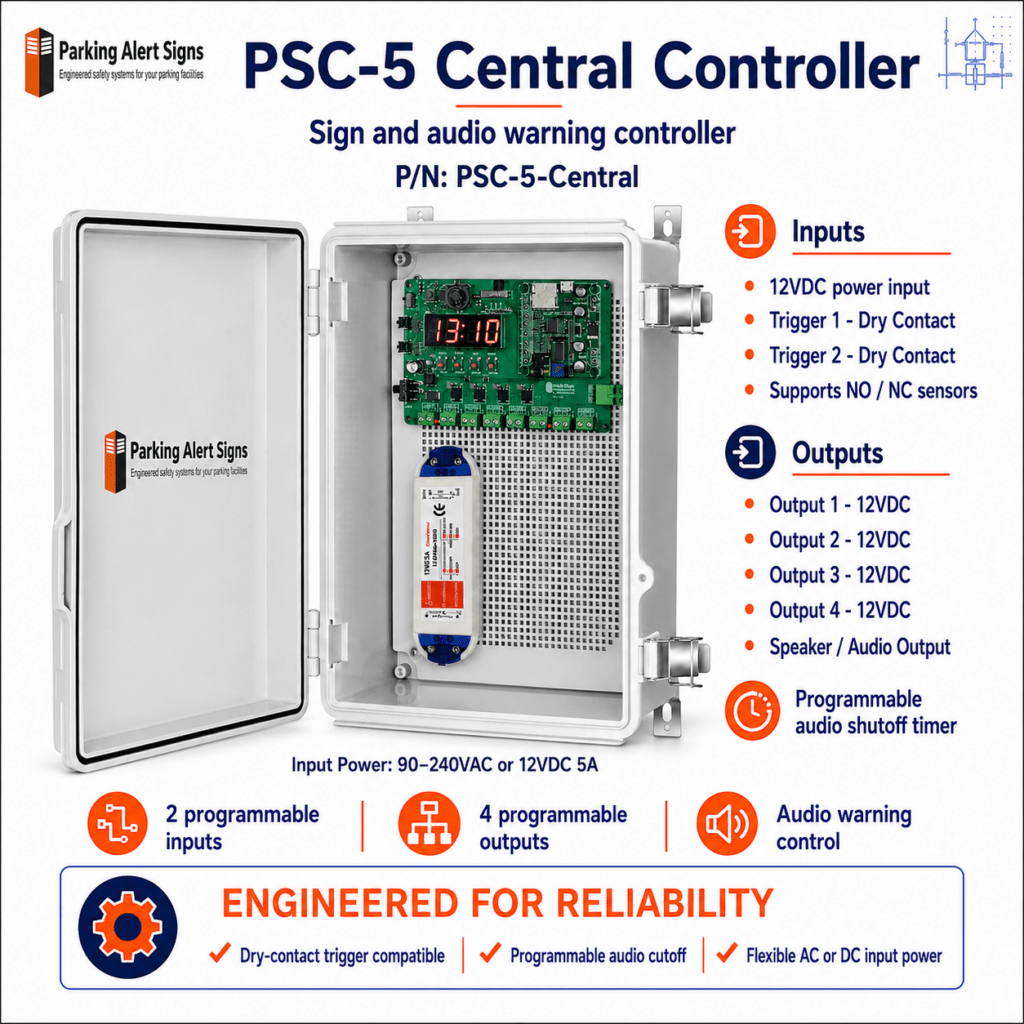

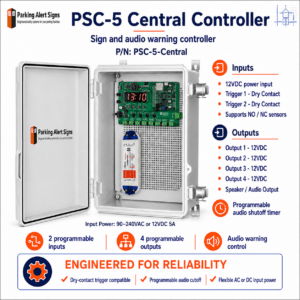

The PSC-5 is used in the controlling and activation of warning systems or controlled audio and electrical equipment. The system takes inputs from sensors such as motion detectors, push buttons, gates, loop detectors, and other vehicle detection systems, and activates Lights and Audio to warn pedestrians and other vehicles of dangers.

We sell direct!
Need help? We will design your system for you.
Free shipping in US over $500
2 Year Warranty

Training videos

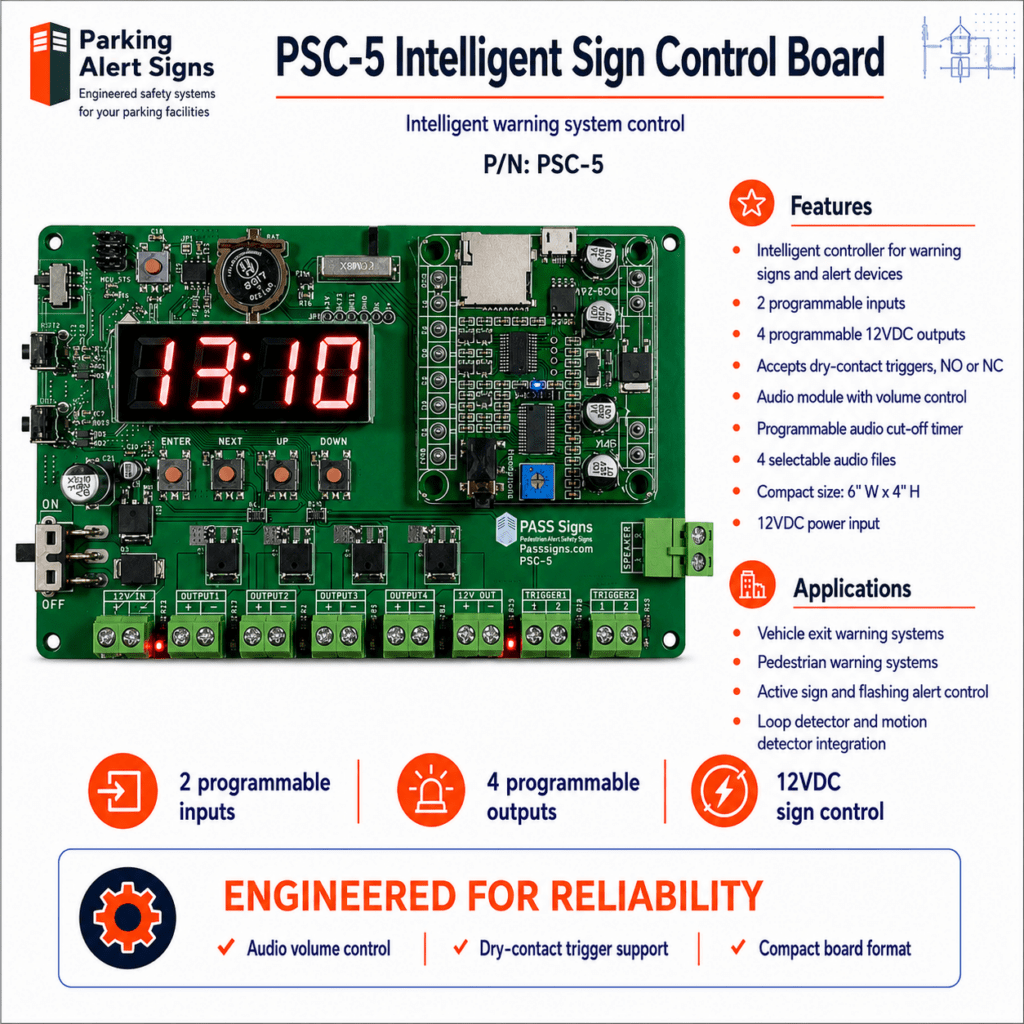

Part name: PSC-5 System Control Board
Part#: PSC-5
Power In: 12VDC minimum 3A / max 6A



PASS Signs Controller (PSC) inside

Input power for PSC-Controller 12VDC
(4) Programmable 12VDC outputs (Flashing or constant)
(2) Programmable dry inputs, (NO or NC)
Activation timer - 5 to 60 seconds
Audio cut-off timer
Audio module for voice or audio alerts, MP3 files
Volume dial - 0 to 90dB
Audio cut-off timer to silence audio at designated times



Operations

4 Modes of Operations

Mode 1 - Default: Input 1 and Input 2 activates all (4) Outputs in programmable flashing 12VDC or constant 12VDC output for the duration of the Activation Timer

Mode 2 - Directional-Logic - Input 1 THEN Input 2 activates all (4) Outputs in programmable flashing 12VDC or constant 12VDC output for the duration of the Activation Timer. Input 2 THEN Input 1 - does nothing.

Mode 3 - Two Independent Sign Controls - Input 1 activates Outputs 1 & 2 in programmable flashing 12VDC or constant 12VDC output for the duration of the Activation Timer.

Input 2 activates Outputs 3 & 4 in programmable flashing 12VDC or constant 12VDC output for the duration of the Activation Timer.

Mode 4 - Two-Way Traffic control - Used for Red/Green Light traffic control of a single lane with queueing control.

Input 1 - North bound traffic

Input 2 - South bound traffic

Normal mode - Green lights output on Outputs on 1 and 3

Input1 triggered - Turns off Output 3 and turns on RED on Ouput 4 - If during the Activation Timer, Input2 is triggered then the signal will be queued until the Activation Timer is complete, and the system will go into Input 2 Trigger. If during the Activation Timer, Input 1 is triggered again, then the system will restart the Activation Timer to allow traffic to clear before switching.

Input2 triggered - Input1 triggered - Turns off Output 1 and turns on RED on Ouput 2 - If during the Activation Timer, Input 1 is triggered then the signal will be queued until the Activation Timer is complete, and the system will go into Input 1 Trigger. If during the Activation Timer, Input 2 is triggered again, then the system will restart the Activation Timer to allow traffic to clear before switching.
