PSC-6 Control Board for traffic control for parking

Solution

Controls parking traffic, detecting vehicles and queuing cars by arrival order for safe, efficient flow.

Description

The PSC6 4-Way Traffic Control Board manages parking facility traffic from up to four directions. Using motion and in-pavement detectors, it identifies vehicles, holds traffic from other lanes for an adjustable time, and queues vehicles based on arrival order. This system ensures safe, efficient, and orderly traffic flow in busy facilities.

We sell direct!
Need help? We will design your system for you.
Free shipping in US over $500
2 Year Warranty

Training videos

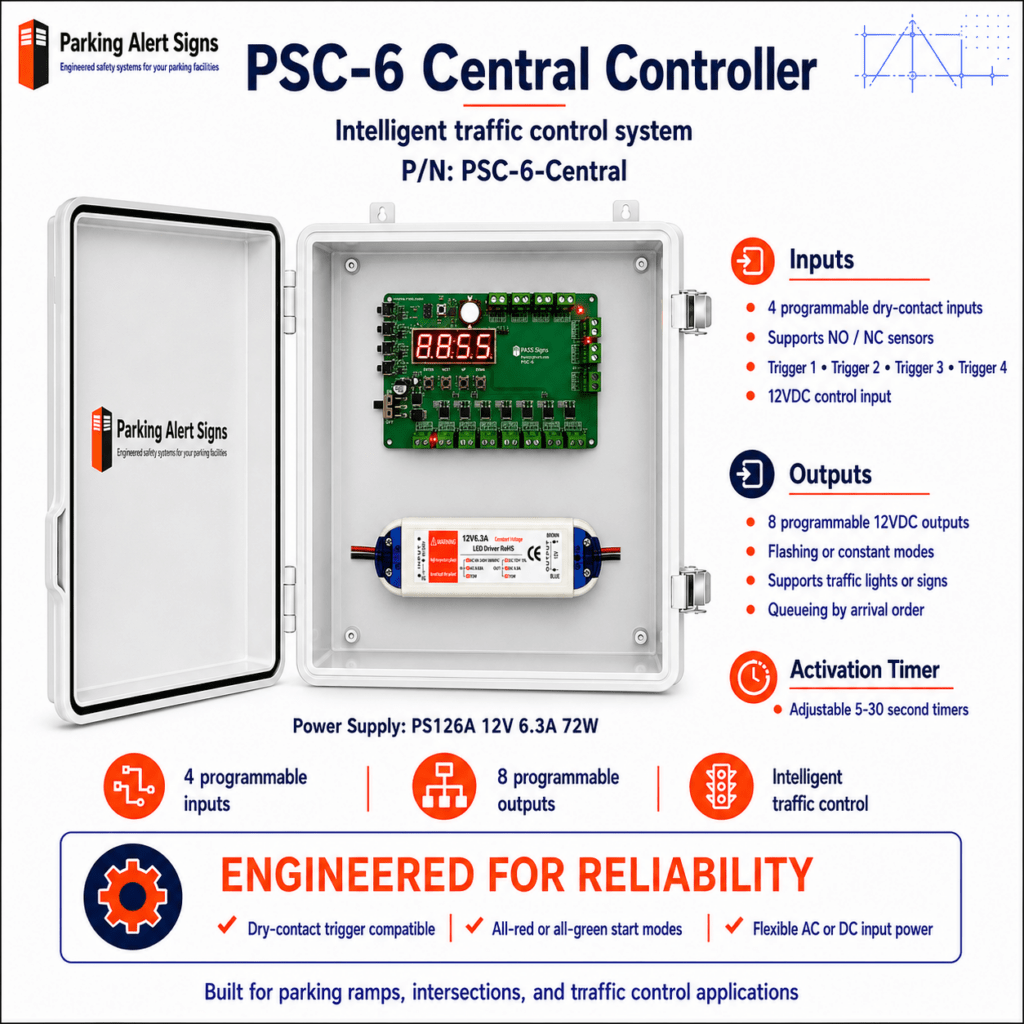

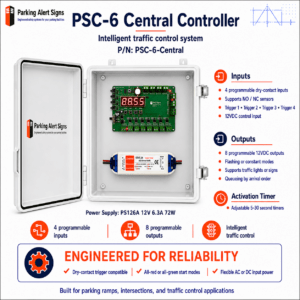

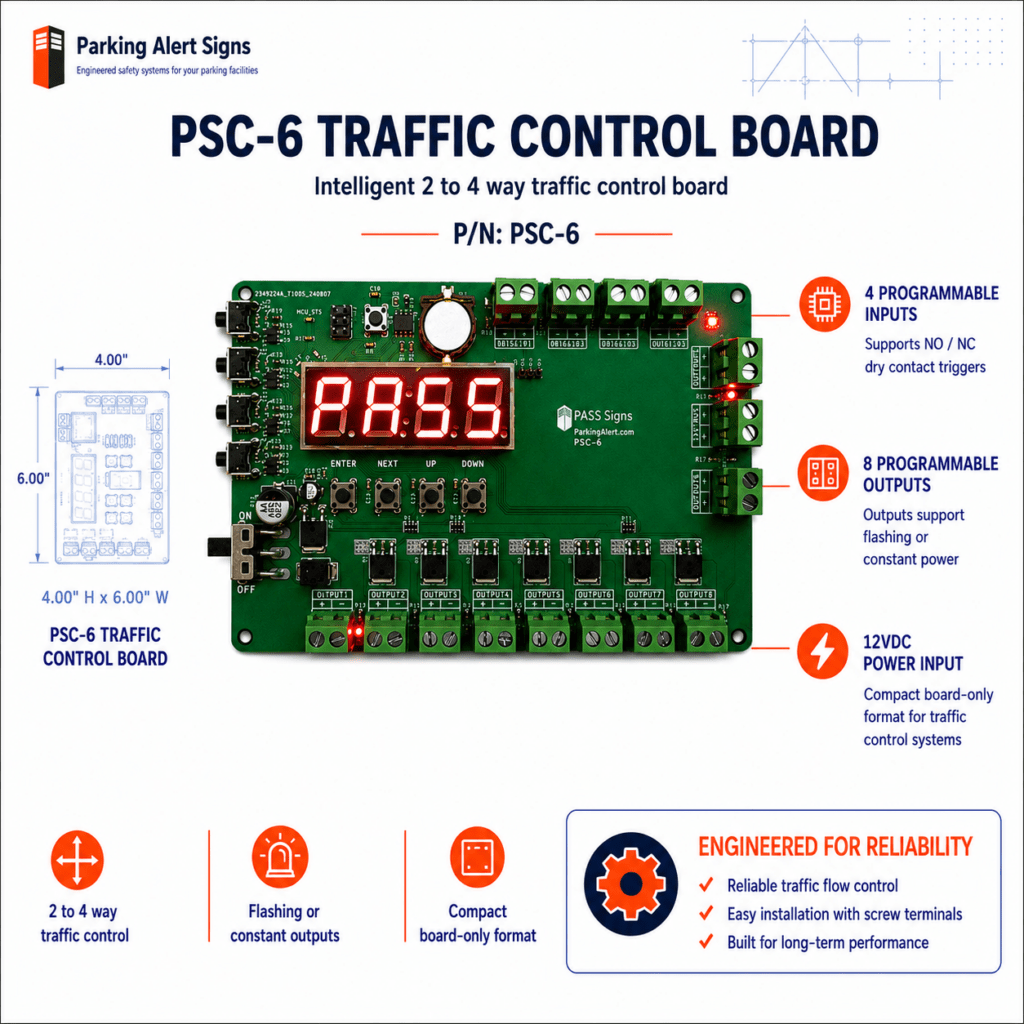

Part name: PSC-6 Traffic Control Board
Part#: PSC-6
Power In: 12VDC minimum 3A / max 6A



PASS Signs Controller (PSC) inside

Input power for PSC-Controller 12VDC
(8) Programmable 12VDC outputs (Flashing or constant)
(4) Programmable dry inputs, (NO or NC)
Activation timer - 5 to 60 seconds

Operations

Red Operations:
When a vehicle is detected at the intersection, all traffic lights initially remain red. The system then activates a green light for the detected vehicle's direction for a designated Activation Time, while all other directions stay red.

If another vehicle is detected from a different direction during the Activation Time, it is added to a queue. Once the Activation Timer expires, the system switches to the queued lane.

If a second vehicle is detected from the original direction during the Activation Time, the timer restarts, allowing the second vehicle to clear before switching lanes.



All Green Operations:
The system begins with all traffic lights green. When a vehicle is detected in one direction, the system turns all other directions red and activates a green light for the detected vehicle's direction for a designated Activation Time.

If another vehicle is detected from a different direction during the Activation Time, it is added to a queue. Once the Activation Timer expires, the system switches to the queued lane.

If a second vehicle is detected from the original direction during the Activation Time, the timer restarts, allowing the second vehicle to clear before switching lanes.
